Automatic Electronic Product Tester, Abrupt Pull Tester Power Wire / Headphone Cable
Model: RS-8112A
Purpose:
This machine is suitable for abrupt pull test on power wire and headphone cable of mobile phone, e-book, tablet PC, electronic dictionaries, laptop and headset, etc.
Standard:
ASTM D4329,D499,D4587,D5208,G154,G53, ISO 4892-3,ISO 11507, EN 534, EN 1062-4, BS 2782, JIS D0205, SAE J2020
Feature:
1. It adopts OMRON® touch screen and Mitsubishi® PLC for control, you can set specifications including test cycles, resetting original height,
ascending and descending speed of pneumatic cylinder and clamp delay, etc. it can display finished test cycles and other information so as
to achieve automatic test.
2. It adopts Panasonic® AC servo drive and Taiwan’s AIM® electric cylinder drive. It has advantage of resetting precision ±0.02mm, low noise
and being durable.
3. The rail is combined aluminum alloy with transparent PMMA, which enhances safety of the equipment.
4. It adopts SMC ® pneumatic clamp for clamping the dedicated weight.
Specification:
| Test station | 1Slot |
| Dedicated weight for abrupt pull | 130g±2g |
| Stroke of abrupt pull | 0~300mm (adjustable) commonly 150mm |
| Test cycles | 0~999999 cycles adjustable |
| Ascending and descending speed of electric cylinder | 1~500mm/sec |
| Positional accuracy of electric cylinder | ±0.02mm |
| Clamping delay | 1~99.9sec (adjustable) |
| Dimension | W800×D838×H1700mm |
| Weight | 165kg |
| Power | AC220V, 3A |
| Air source | ≥0.6MPa |

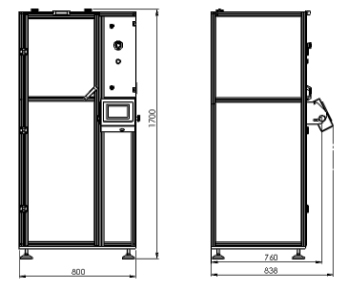

Dimension:
Our center office & Factory workshop & show room
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is INFINITY. - Q: What is the model number of this product?
A: The model number of this product is IZ1001 Series. - Q: Where is this product made?
A: This product is made in China. - Q: What certifications does this product have?
A: This product is CE and ISO certified. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
